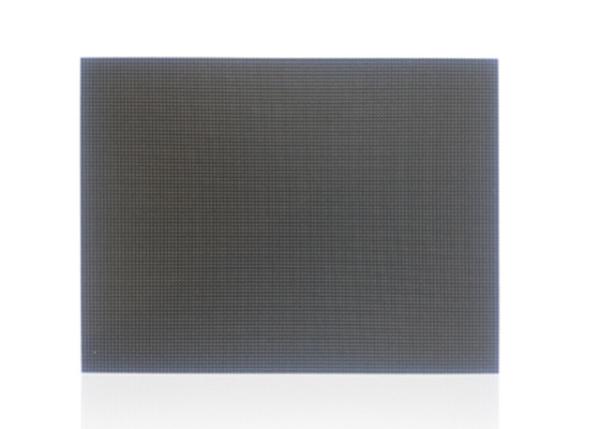

1000cd / M2 Brightness LED Module Panel1.56mm Synchronization Control

Name: 1000cd M2 Brightness LED Module Panel156mm Synchronization Control
Brand: XUNSHINA
Price: 5000 USD

Quality 1000cd / M2 Brightness LED Module Panel1.56mm Synchronization Control for sale

Brand Name : XUNSHINA

Model Number : XS-P1.56

Certification : CE/ROHS/FCC/3C

Place of Origin : China

MOQ : 100pcs

Price : USD5000-7000/SQM

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000sqm/month

Delivery Time : 15-20 days

Packaging Details : wooden case or flight case

Pixel Pitch : 1.56mm

Tube Chip Color : Full color

Pixel Configuration : 1R1G1B

Module Size : 200x150mm

IC Driver : MBI5153

Module Resolution : 128x96

Pixel Density : 409600dots/m2

Cabinet Size : 400x300mm

Cabinet Resolution : 256x192

Brightness : 1000cd/m2

Contact Now

Small Pixel LED Display P1.56 LED Module Ultra Slim And Light Weight

Small Pixel LED Display P1.56 LED Module LED Screen For Indoor Use

Product Features
1. Excellent effect: Using dynamic scanning technology, the picture is stable, no noise, the image effect is clear, the animation effect is vivid and diverse, and the video effect is smooth and realistic;
2. Rich in content: can display text, graphics, images, animation, video information;
3. Flexible mode: the user can arbitrarily arrange the display mode;

4. Small pixel led display, ultra slim and light weight

Specification

Model No.	XS-P1.56
Pixel pitch	1.56mm
LED type	SMD1010
IC driver	FM6153/MBI5153
Pixel configuration	1R1G1B
Module size	200x150mm
Module resolution	128*96
Density	409600dots/m2
Module weight	0.2KG
Cabinet size	400x300mm
Cabinet material	Die casting aluminum
Cabinet resolution	256*192
Cabinet weight	5KG
Best viewing distance	1-25m
Viewing angle	160/160 H/V
Average power consumption	<500W/m2
Max power consumption	<1200W/m2
Driving method	1/32 scanning
Control method	Synchronization
Brightness	>1000cd/m2
Brightness control	16 level
Refresh frequency	>4096Hz
Frame frequency	>60Hz
Out of control point	<0.0002
MTBF	>5000hrs
Life span	75000-100000hrs
Application	Indoor
